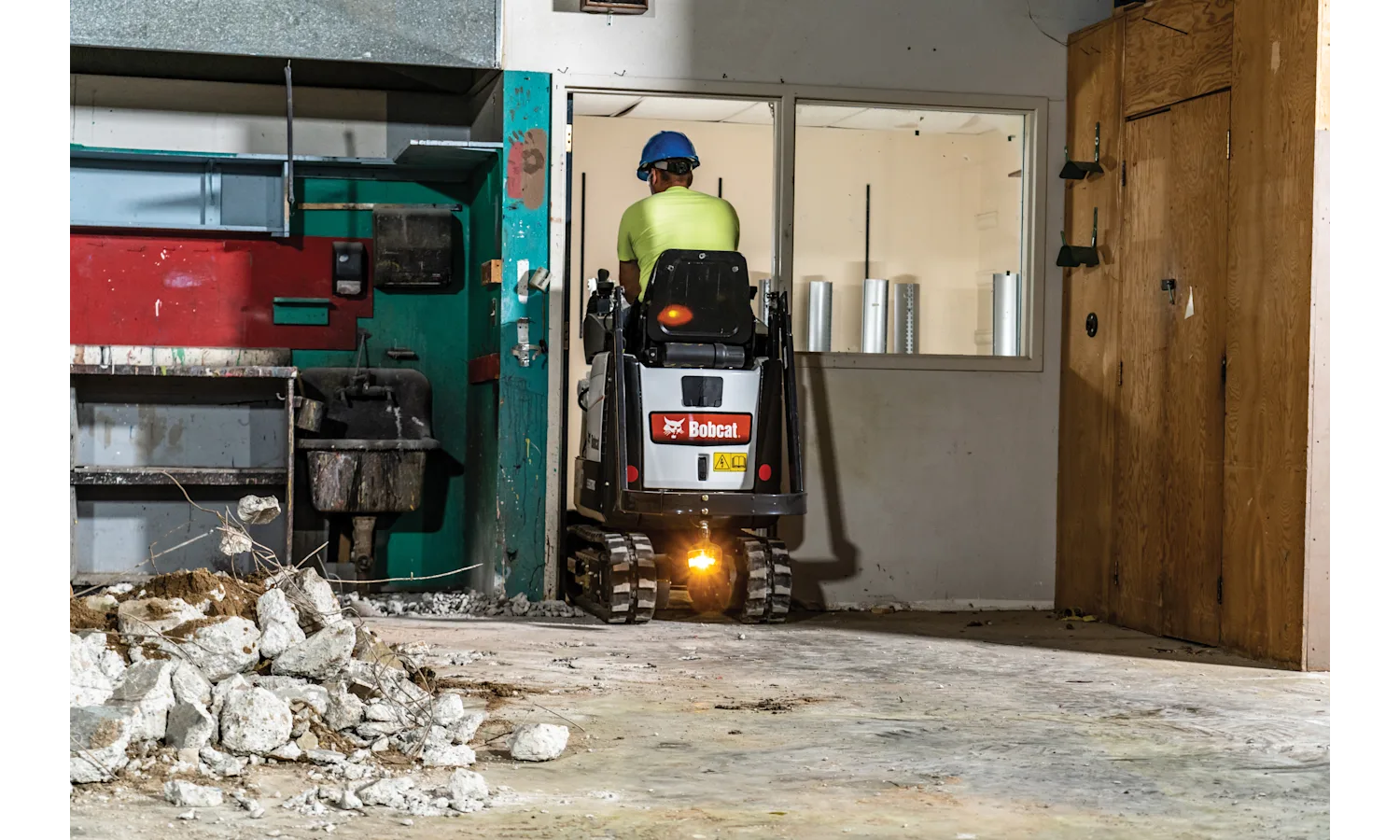

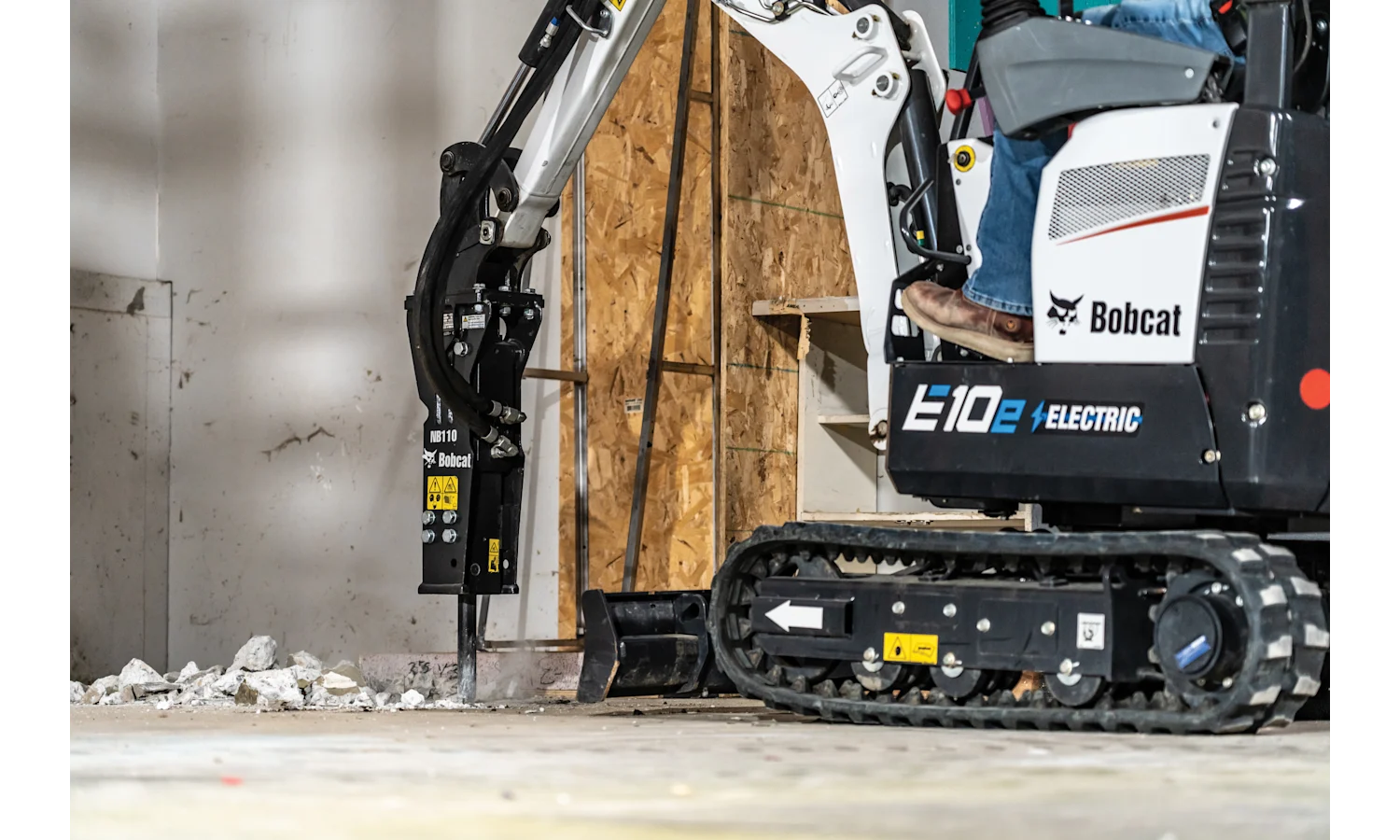

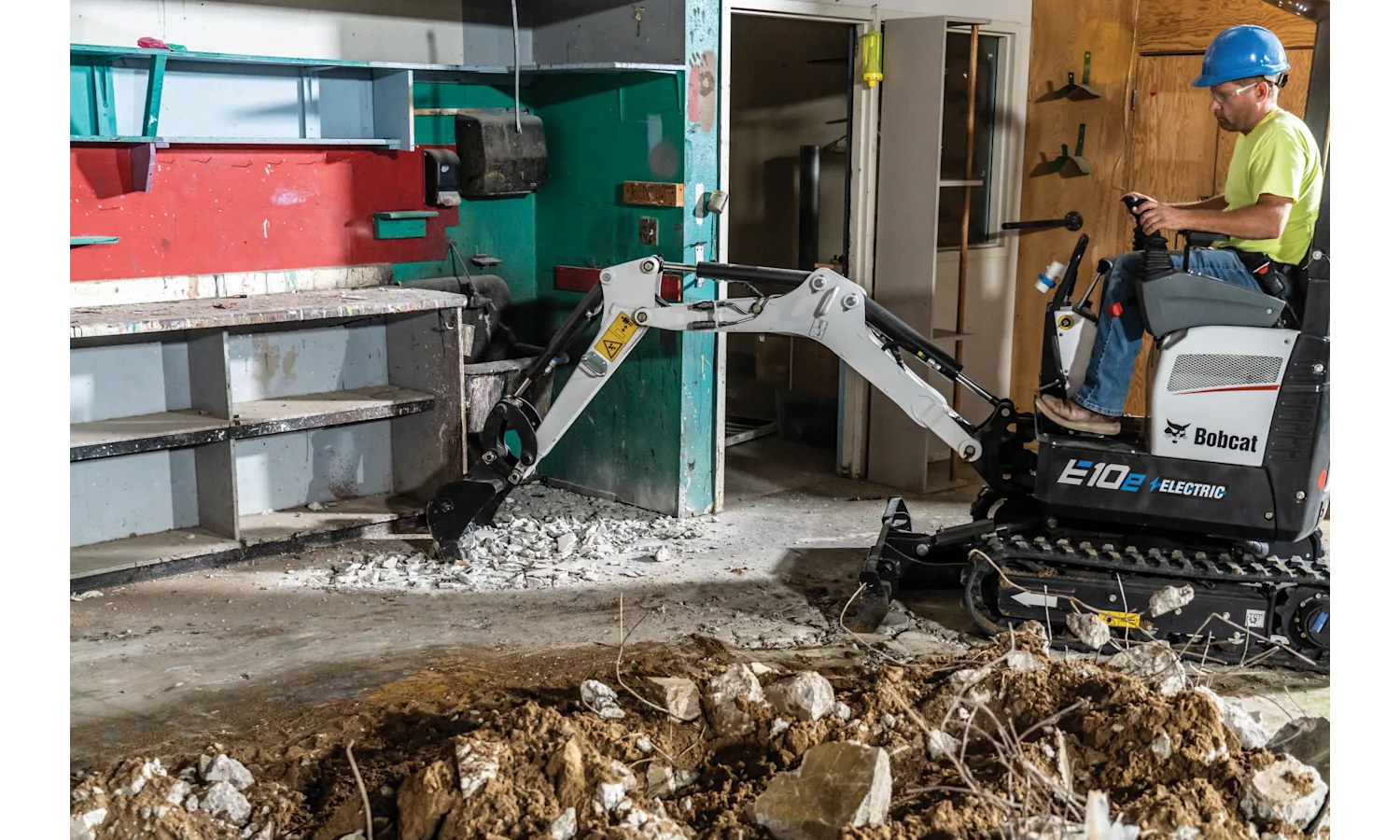

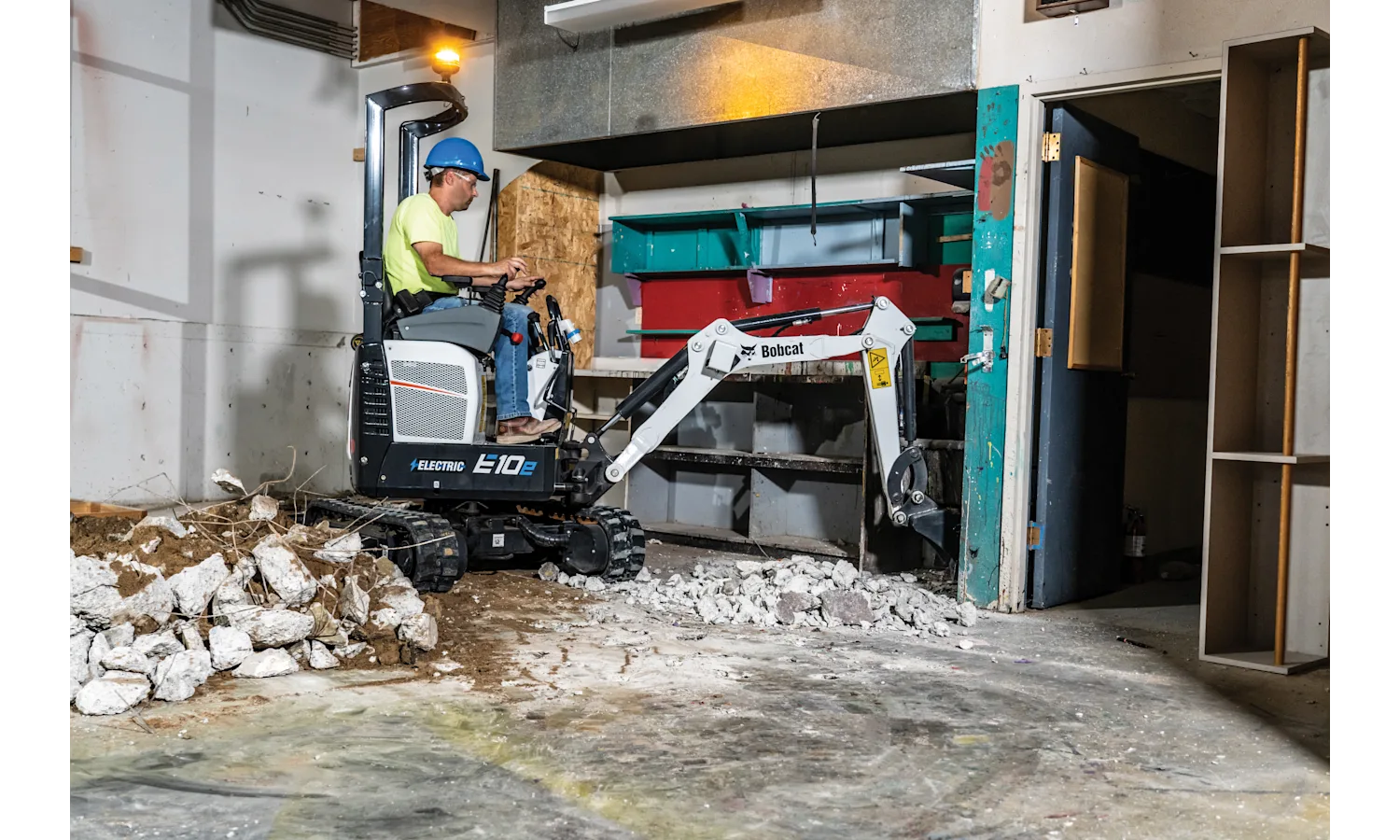

Bobcat® E10e Battery-Electric Compact Excavator – Power Meets Zero Emissions

The Bobcat® E10e is a groundbreaking battery-electric compact excavator that delivers the power and performance of a conventional model — without the noise, emissions, or fuel. Designed for indoor and outdoor worksites, the E10e provides a quiet, clean, and efficient solution for the most demanding environments.

With its zero tail swing and compact footprint, the E10e can operate in tight spaces where other machines simply can’t. Its hydraulically retractable undercarriage allows it to narrow down to just 27.95 inches (71 cm) for doorways and confined areas, and then expand to 43 inches (110 cm) for enhanced stability and lifting power.

Electric Innovation with Uncompromised Performance

Powered by two lithium-ion batteries delivering a total of 11.5 kWh, the E10e combines high energy density, long life, and zero maintenance requirements. These advanced batteries ensure strong breakout forces, smooth operator control, and consistent hydraulic power throughout the workday.

With up to 4 hours of continuous operation and a 2-hour off-board charge time, the E10e offers maximum uptime and flexibility. Whether you’re working in urban areas, hospitals, tunnels, or sensitive indoor environments, this mini excavator operates quietly (72 dB interior) and emission-free, making it the ideal choice for eco-conscious projects.

Key Features

• Zero Tail Swing Design: Full rotation without overhang for confined workspaces.

• Lithium-Ion Battery System (11.5 kWh): Maintenance-free, long-lasting, and high-efficiency power source.

• Retractable Undercarriage: Adjusts from 28" to 43" for superior access and stability.

• Integrated On-Board Charger: Enables easy charging from standard power sources.

• Two-Speed Travel: Provides flexibility between maneuvering precision and fast movement.

• Auxiliary Hydraulics with Two-Way Flow: Expands versatility for attachments and specialized tools.

• Low Noise & Zero Emissions: Ideal for indoor or noise-restricted areas.

Technical Specifications

• Operating Weight: 2,648 lbs (1.2 t)

• Maximum Dig Depth: 76.9 in (1.95 m)

• Maximum Reach at Ground Level: 121.8 in (3.09 m)

• Bucket Digging Force: 1,865 lbf

• Arm Digging Force: 1,248 lbf

• System Voltage: 51.8 V

• Hydraulic Flow: 5.3 gpm

• Auxiliary Pressure: 2,756 psi

• Travel Speed: 1.1 – 1.8 mph

• Battery Charge Time: 2 hours (off-board)

• Run Time: Approximately 4 hours
