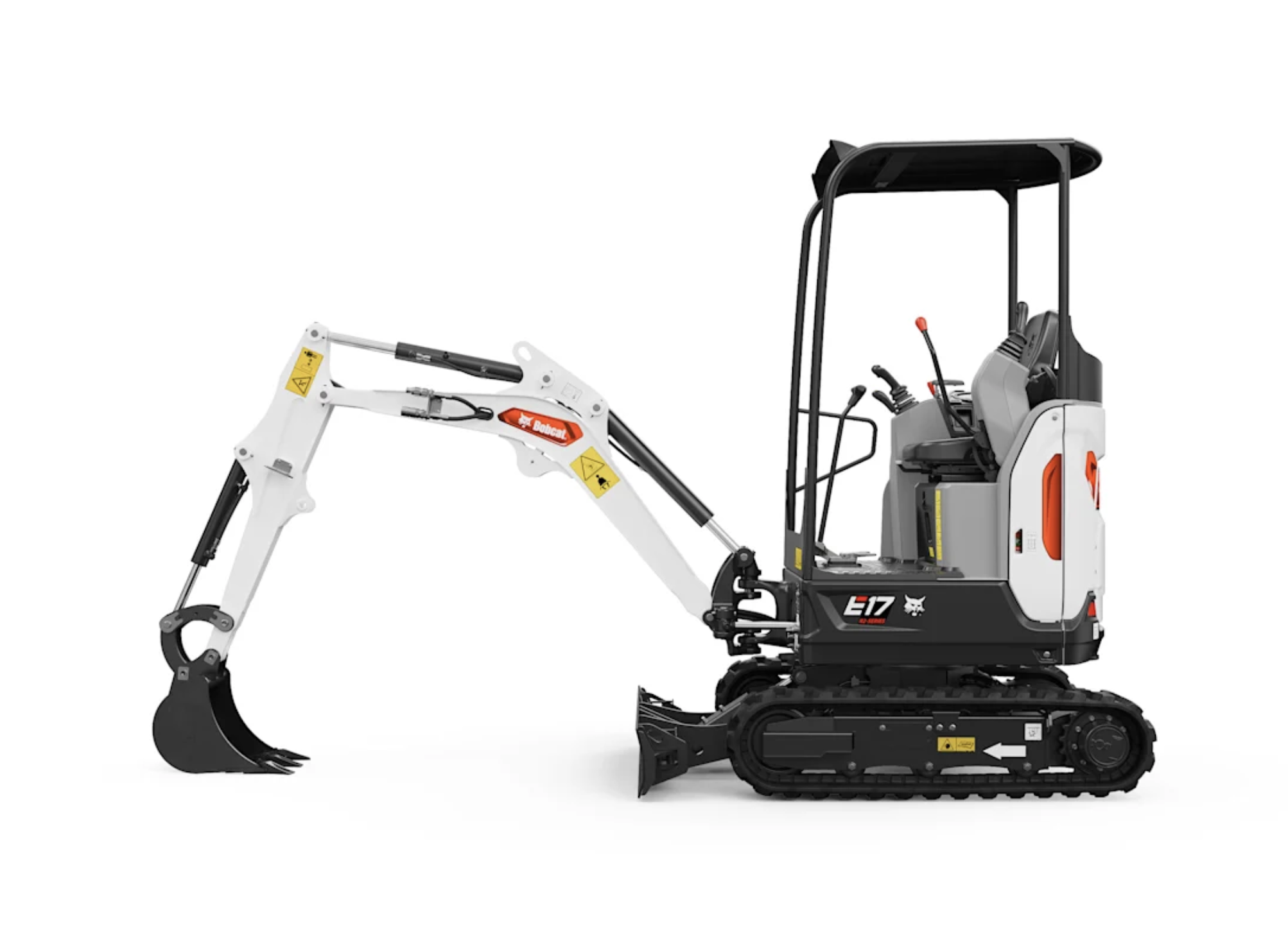

E17 Compact Excavator – Compact Size, Full-Sized Power

Designed to empower operators of all experience levels, the Bobcat E17 Compact Excavator delivers reliable performance, everyday versatility, and exceptional maneuverability. With its zero-tail-swing design, retractable undercarriage, and foldable dozer blade, the E17 is built to work efficiently in the tightest spaces — without compromising power or stability.

Compact Design and Maximum Maneuverability

The E17’s zero-tail-swing configuration allows for unrestricted rotation, making it ideal for confined jobsites and urban areas. The retractable undercarriage and foldable blade reduce the machine’s width to just 38.6 inches, allowing it to pass through narrow gates and doorways with ease.
Integrated tie-down points, lift locations, and an automatic slew brake make transportation between jobs fast, safe, and simple.

Hydraulic Power and Smooth Control

Equipped with a 15 hp engine and a load-sensing hydraulic system, the E17 delivers smooth, responsive control and enhanced lifting and digging performance. The operator can travel and operate attachments simultaneously, improving jobsite efficiency.
Low-effort joysticks with fingertip control for boom swing and auxiliary hydraulics ensure precision and ease of use for operators of all skill levels.

Built for Durability

The E17 is engineered for long-term reliability. Reinforced panels, easy-opening covers, under-boom lighting, and long-life rubber tracks all contribute to reduced maintenance and increased uptime. The improved cylinder fittings and wider track clearance enhance durability even under demanding conditions.

Comfort and Convenience

Though compact, the E17 offers a comfortable and ergonomic operator station with intuitive controls. Every element is designed for efficiency — from convenient transport tie-down points to a slew brake system that enhances safety and stability during operation.

Key Specifications

• Operating Weight: 3,774 lb

• Engine Power: 15 hp

• Maximum Dig Depth: 87.8 in (7.3 ft)

• Maximum Reach at Ground Level: 12.9 ft

• Bucket Digging Force: 4,121 lbf

• Arm Digging Force: 2,680 lbf

• Rated Lift Capacity: 807 lb

• Fuel Tank Capacity: 5.6 gal

• Travel Speed: 2.5 mph (high) / 1.2 mph (low)

• Boom Swing: 80° left / 60° right
