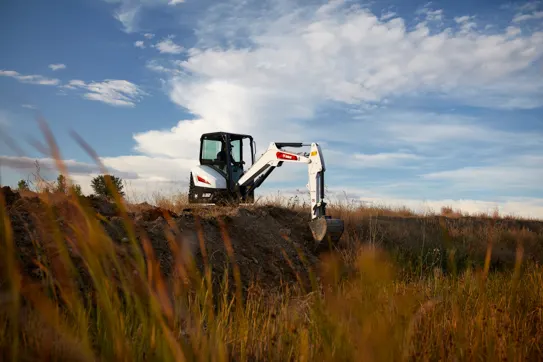

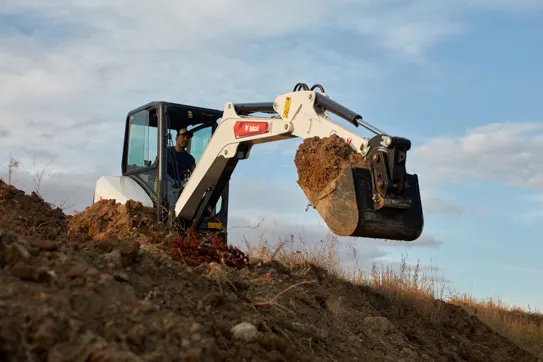

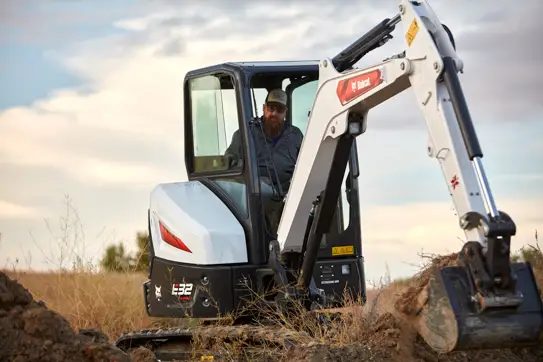

Bobcat® E32 Compact Excavator – Exceptional Power and Maneuverability

The Bobcat E32 is a compact (mini) excavator that combines impressive power with maneuverability in a conventional tail-swing design. Narrower than the E35 model, it is ideal for working in tight spaces such as doors, gates, or urban job sites.

E32 Highlights:

• Performance and Maneuverability: Enjoy a bucket digging force of 7,284 lbf and an arm digging force of 4,690 lbs for efficient operation on any job.

• Compact Design: Its 61.8-inch width allows easy access to hard-to-reach areas.

• Arm Options: Choose between a long arm for extended reach or a clamp-ready extendable arm for specialized tasks.

• Lift Capacity: Up to 2,975 lbs with a lift radius of 118 inches.

• Digging Depth: Maximum of 10.1 ft for versatile applications.

• Dump Height: Up to 137.2 inches for efficient loading into containers or trucks.

Key Technical Specifications:

• Operating Weight: 7,403 lbs

• Engine Power: 24.8 hp at 2,450 rpm

• Travel Speed: 2.9 mph high, 1.6 mph low

• Auxiliary Hydraulic Flow: 16.9 gpm at 2,987 psi

• Fuel Tank Capacity: 13.7 gallons

• Dimensions: Length 183.7 in, Width 61.8 in, Height 96.2 in

• Operator Comfort: Optional cabin with heating and air conditioning, radio, standard Quick Tach system for fast attachment changes.

• Rubber Tracks and Angle Blade: Provide stability and versatility on all types of terrain.

The E32 is the perfect machine for contractors, landscapers, and construction professionals seeking a compact, powerful, and precise excavator capable of working efficiently in confined spaces while offering optimal operator comfort.
